DIMENSIONS
LENGTH - 2020mm
WIDTH - 780mm
HEIGHT - 1070mm
GROUND CLEARANCE - 170mm
UNLADEN WEIGHT - 137kg
PERMITTED TOTAL WEIGHT - 150kg
USABABLE TANK VOLUME - 10 Ltr
RESERVE - N/A
WHEELBASE - 1345mm
SEAT HEIGHT - 770mm
CHASSIS
FRAME - Arch bar Truck
FRONT SUSPENSION - Telescopic Forks
FRONT SUSPENSION STROKE - 115mm
FRONT BRAKE - Disc
REAR SUSPENSION - Swingarm
REAR SUSPENSION STROKE - 50mm
REAR BRAKE - Disc
FRONT RIM TYPE - Cast
REAR RIM TYPE - Cast
REAR RIM DIMENSION - 17 in
FRONT TYRE - 100/80-17
REAR TYRE - 130/70-17
HEADLIGHT LAMP - N/A
TAILLIGHT LAMP - N/A
COLOURS
ENGINE
CHASSIS
DIMENSIONS

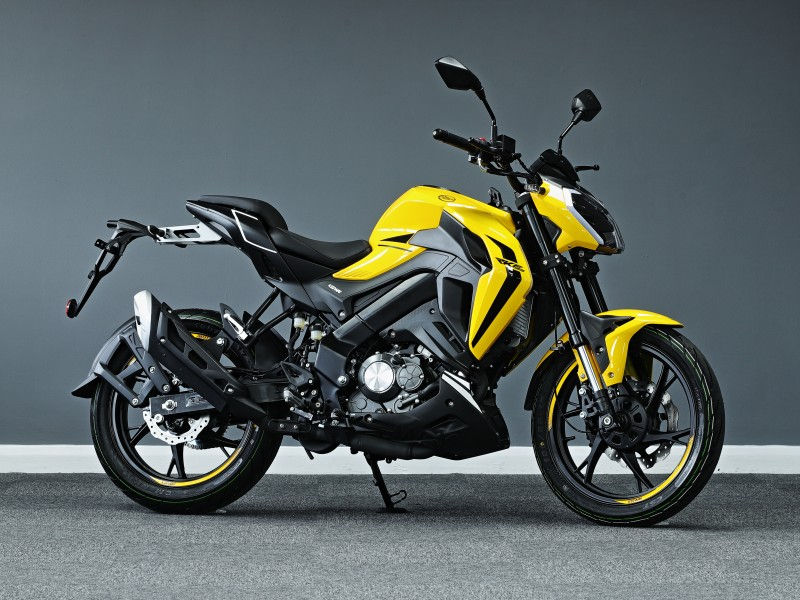

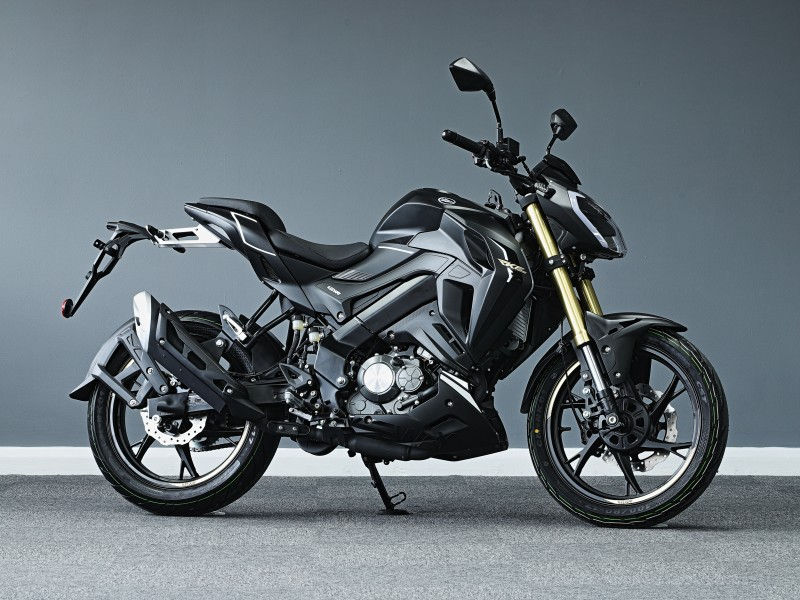

Chassis Specifications Keeway RKF 125cc 2023
FRAME
Arch bar Truck
FRONT SUSPENSION
Telescopic Forks
FRONT SUSPENSION STROKE
115mm
FRONT BRAKE
Disc
REAR SUSPENSION
Swingarm
REAR SUSPENSION STROKE
50mm
REAR BRAKE
Disc
FRONT RIM TYPE
Cast
REAR RIM TYPE
Cast
REAR RIM DIMENSION
17 in
FRONT TYRE
100/80-17
REAR TYRE
130/70-17
HEADLIGHT LAMP
N/A
TAILLIGHT LAMP
N/A
ENGINE
ENGINE TYPE - 1-cylinder/4-stroke/4-valve
DISPLACEMENT - 124.8cc
BORE X STROKE - 54mm x 54.5mm
COMPRESSION RATION - 11:1
RATED OUTPUT - 9.0kW/9500 r/min
MAX. TORQUE - 10N.m/7500 r/min
LUBRICATION - Pressure Splash
FUEL SUPPL - Electronic Fuel Injection
EXHAUST SYSTEM - Euro 5 Compliant
CERTIFICATION - Euro 5
CLUTCH - Wet multi-plate
GEARBOX - 5 Speed
FINAL DRIVE - Chain
IGNITION - TLI
COOLING SYSTEM - Water Cooled
BATTERY - 12V6Ah
SPARK PLUG - N/A
STARTING - Electric
